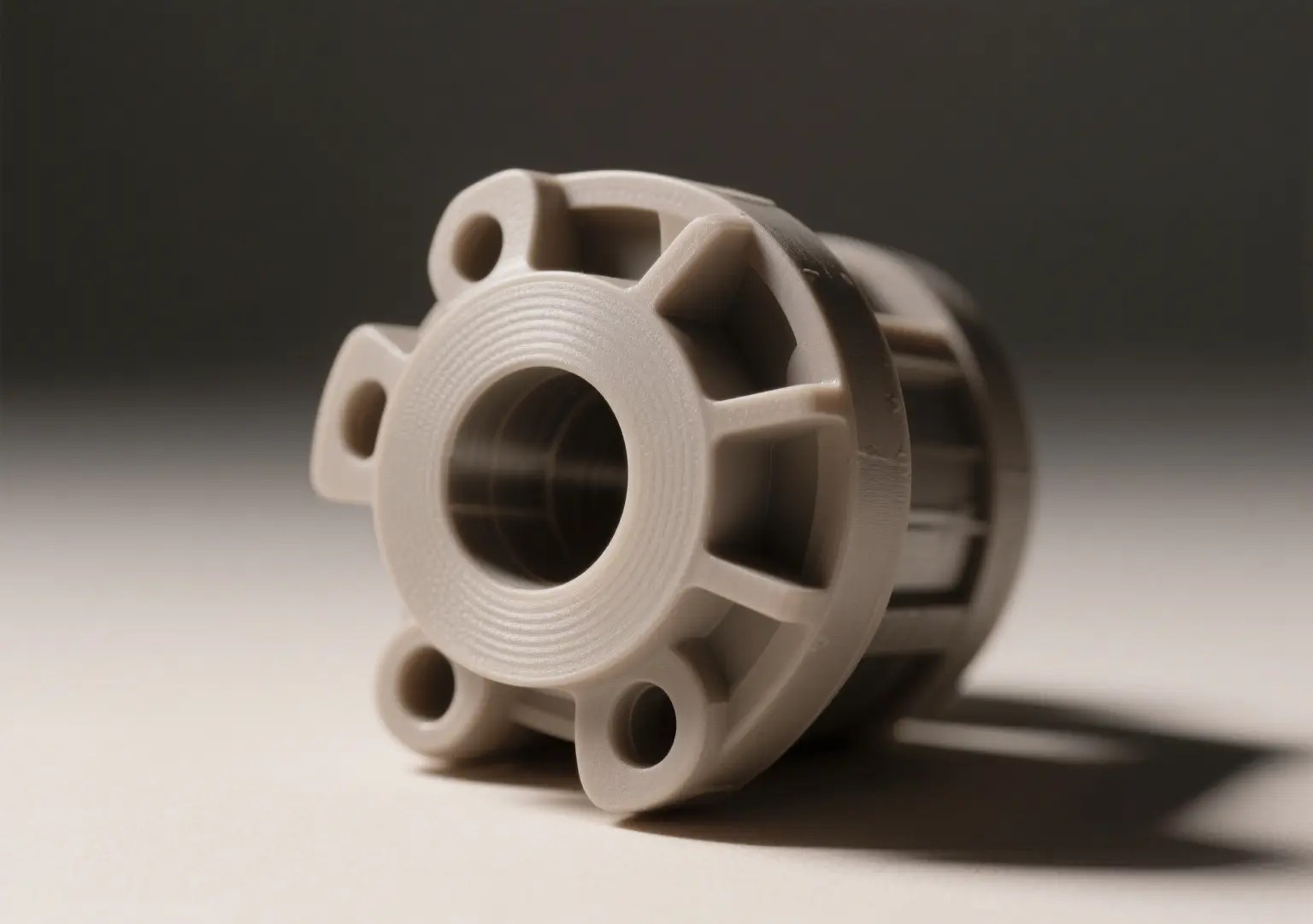

This guide provides a comprehensive overview of TPE injection molding. From material properties and molding processes to design tips and application examples, this article will help you better understand how to work with TPEs and when to choose this process over alternatives.

What Is TPE and Why Use It in Injection Molding?

TPE, or thermoplastic elastomer, is a class of materials that combines the processing advantages of thermoplastics with the elastic properties of rubber. Unlike traditional thermoset rubber, TPE does not require vulcanization, and it can be melted, molded, and recycled multiple times.

The structure of TPEs typically includes hard and soft segments. The hard segments give the material dimensional stability, while the soft segments provide elasticity and flexibility. TPEs are available in several subtypes, such as styrenic block copolymers (SBC), thermoplastic polyurethane (TPU), thermoplastic olefins (TPO), and thermoplastic vulcanizates (TPV), each offering distinct characteristics suitable for various industries.

There are several compelling reasons to choose TPE for injection molding:

• Soft-touch feel for enhanced user comfort in grips and handles
• High elasticity and fatigue resistance, ideal for dynamic parts
• Lightweight and excellent insulation properties
• Compatibility with overmolding onto rigid plastics like ABS, PC, and PP
• Wide range of hardness options (measured in Shore A or Shore D)

Thanks to these characteristics, TPEs are widely used in automotive seals, consumer electronics, wearable devices, medical tubing, and appliance handles.

How TPE Injection Molding Works

TPE injection molding follows the same general process as conventional thermoplastic molding, but certain parameters and tool designs are tailored for elastomeric flow behavior and cooling properties.

1. Material Feeding: TPE pellets are loaded into a hopper and fed into the heated barrel of the injection molding machine.
2. Melting and Injection: The screw inside the barrel heats and mixes the material to a uniform melt, then injects it into a pre-designed mold cavity at high pressure.
3. Cooling and Solidification: The molten TPE fills the cavity, replicates its shape, and begins cooling rapidly. Cooling time depends on the material grade and wall thickness.
4. Ejection: Once solidified, the part is ejected from the mold and may undergo post-processing such as trimming, inspection, or secondary overmolding.

TPE’s relatively low melt viscosity and fast cooling behavior make it ideal for high-speed production. However, its rubber-like elasticity can make de-molding slightly more complex, especially for undercuts or deep features. Tooling designs often include flexible cores, ejector pins, or slides to accommodate these features.

Modern injection molding machines used for TPE processing are equipped with closed-loop control systems to maintain precise temperature and pressure settings, ensuring dimensional consistency across large production runs.

Key Advantages of TPE Injection Molding

Using TPEs in injection molding offers multiple advantages across the supply chain, from design flexibility to sustainability. Here are some of the most notable benefits:

• Elasticity with Precision: TPEs can stretch and return to their original shape repeatedly without permanent deformation, while still achieving tight dimensional tolerances when injection molded.
• Soft-Touch and Ergonomic Comfort: TPEs create a pleasant tactile experience, making them ideal for overmolded grips on tools, razors, kitchen gadgets, and electronics.
• Reduced Assembly Complexity: Overmolding TPE directly onto a substrate can eliminate fasteners or adhesives, reducing part count and assembly time.
• Cost-Efficiency in Production: TPEs eliminate the need for curing cycles or secondary bonding processes used in rubber molding.
• Recyclability: As thermoplastics, TPEs can be re-ground and reused, reducing material waste and environmental impact compared to thermoset elastomers.
• Color and Aesthetic Flexibility: TPEs are available in natural, translucent, or pre-colored grades, and can be custom-pigmented to match brand aesthetics.

In addition, TPE parts can be engineered for resistance to UV exposure, oils, chemicals, and weathering, making them suitable for both indoor and outdoor environments.

Applications of TPE-Molded Parts

Thermoplastic elastomer injection molding is used in a wide range of industries due to its performance versatility and attractive appearance. Some common applications include:

• Consumer Products: Grips for toothbrushes, pens, tools, and power equipment; soft enclosures for electronics and remote controls.
• Automotive: Seals, gaskets, bumpers, and interior components requiring a combination of durability and softness.
• Medical Devices: Tubes, valves, wearable components, and seals that require biocompatibility, sterilizability, and softness.
• Industrial Equipment: Vibration dampers, strain reliefs, overmolded cable assemblies, and control knobs.
• Sporting Goods and Wearables: Protective pads, wristbands, and grips with both functional and aesthetic value.

These examples show how TPEs bridge the gap between rigid plastics and soft rubbers, enabling innovative product designs that are functional, ergonomic, and appealing.

Design Tips for TPE Injection Molding

Designing for TPE injection molding requires a balance between material behavior, tool capabilities, and end-use performance. Here are key considerations when engineering parts from TPE:

• Wall Thickness: Aim for uniform wall thickness to promote consistent flow and minimize warping. Avoid sharp transitions, which can trap material or cause sink marks.
• Draft Angles: Include appropriate draft angles (typically 1 to 3 degrees) on vertical walls to facilitate part ejection without tearing or deformation.
• Undercuts and Complex Geometry: Use slides or lifters in the mold to handle undercuts. For highly elastic TPEs, flexible ejection strategies may be used.
• Shrinkage Rate: TPEs typically shrink more than rigid plastics. Account for this in mold design, with typical values ranging from 1.5% to 3%.
• Bonding Considerations: If overmolding onto a rigid substrate, ensure compatibility and sufficient surface texture to achieve mechanical or chemical bonding.
• Ventilation: Because TPEs can trap air more easily, proper venting in the mold is crucial to avoid air traps and short shots.

Choosing the right TPE compound is also a key design factor. Shore hardness, elasticity, chemical resistance, and color stability vary widely among TPE types. Design engineers should consult with material suppliers or molders during the material selection phase.

TPE vs Other Materials: Which One to Choose?

When selecting materials for injection molding, TPE is often evaluated alongside other flexible or soft-touch materials. Below is a comparison of TPE with common alternatives based on mechanical properties, processing requirements, and end-use characteristics.

TPE vs TPU

Thermoplastic polyurethane (TPU) is a subtype of TPE, but it stands apart due to its superior abrasion resistance, mechanical strength, and chemical resistance. TPUs are commonly used in automotive bushings, industrial belts, and smartphone cases where toughness is essential. While TPEs are softer and often more economical, TPUs may be preferred for parts requiring higher tensile strength or transparency.

TPE vs Silicone

Silicone rubber is widely used in medical, food-grade, and high-temperature applications. Compared to TPE, silicone offers better thermal stability and biocompatibility, but it requires compression or liquid injection molding, which involves more complex and costly tooling. TPE is often chosen for disposable or semi-durable products due to its recyclability and faster cycle times.

TPE vs Thermoset Rubber

Thermoset rubbers, such as EPDM or nitrile rubber, offer excellent aging resistance and mechanical durability but require vulcanization and longer processing times. TPE provides similar elasticity with the added advantage of being thermoplastic, allowing for faster production and easier recycling. TPE also enables overmolding, which is difficult with traditional rubbers.

Summary Comparison Table

Why Partner with a Specialized Manufacturer for TPE Injection Molding?

While TPE is versatile and efficient, achieving consistent product quality requires specialized knowledge in tooling design, material flow control, and process optimization. Collaborating with an experienced injection molding partner ensures you benefit from:

• Custom mold design that suits the elasticity and shrinkage behavior of TPE
• Expertise in overmolding for dual-material components
• Advanced mold maintenance and tolerance control for repeatability
• Proper selection of compatible TPE compounds for the intended use
• Integrated prototyping services to validate design before full production

Choosing the right manufacturing partner early in the design phase can dramatically reduce time to market, minimize design errors, and optimize long-term cost-effectiveness.

CSMFG’s Custom TPE Injection Molding Services

At CSMFG, we offer professional TPE injection molding services tailored to customers in diverse industries including medical, automotive, consumer electronics, and industrial products. With decades of experience in custom plastic and elastomer molding, our team provides end-to-end support from design assistance to final delivery.

Key Service Features

• In-house mold design and tooling capabilities
• Compatibility with overmolding, insert molding, and multi-shot processes
• Support for low-volume prototyping and large-scale production
• Access to a wide range of TPE materials including SBC, TPU, TPO, TPV
• Tolerances and quality inspection aligned with ISO and customer specifications
• International logistics and responsive engineering communication

Whether you are developing a new consumer product, sourcing an alternative supplier, or scaling up an existing design, CSMFG’s TPE injection molding solutions can meet your exact requirements.

Contact CSMFG for Your TPE Project

CSMFG is committed to delivering precision-molded TPE parts that combine function, comfort, and durability. If you’re considering TPE for your next product or need a reliable supplier for existing parts, our engineering team is ready to help.

Visit CSMFG to request a quote, schedule a consultation, or learn more about our custom injection molding capabilities.

Frequently Asked Questions

What is the typical hardness range of TPE materials?

TPEs are available in a wide Shore A hardness range from as low as 20A to as high as 90A or more. Some compounds may reach into the Shore D range for stiffer applications.

Can TPE be used in medical applications?

Yes. Certain medical-grade TPEs are biocompatible and suitable for skin contact, sterilization, and FDA compliance. Always confirm with the material supplier regarding regulatory certifications.

How long does it take to develop a TPE mold?

Lead time for a TPE injection mold typically ranges from 3 to 5 weeks depending on complexity, material selection, and whether overmolding is involved.

Is TPE recyclable?

Yes. As a thermoplastic, TPE can be reprocessed and recycled, unlike thermoset rubbers which cannot be re-melted.

Conclusion

TPE injection molding is a powerful solution for manufacturers seeking a balance of softness, performance, and production efficiency. It supports ergonomic designs, fast cycle times, and multi-material integration through overmolding, making it ideal for a wide range of modern applications. With the right design considerations and manufacturing partner, teams can fully leverage the benefits of TPE in both prototyping and full-scale production.

Partnering with a specialist like CSMFG ensures that your molded TPE parts meet the highest standards of quality, performance, and consistency. Contact us today to explore how we can support your next project with custom elastomer molding expertise.

The post TPE Injection Molding: A Complete Guide for You first appeared on Supply CSMFG.

<p>The post TPE Injection Molding: A Complete Guide for You first appeared on Supply CSMFG.</p>

In today’s fast-paced manufacturing environment, industries increasingly demand plastic components that are not only lightweight but also maintain high structural integrity and dimensional precision. Thin wall injection molding has emerged as a powerful solution to meet these demands, especially in high-volume production of parts for sectors like electronics, medical devices, automotive, and consumer packaging.

Thin wall injection molding enables the production of components with significantly reduced wall thickness, allowing for faster cycle times, material savings, and enhanced part performance. However, achieving these advantages requires careful attention to design, material selection, and tooling.

This guide provides a detailed overview of the thin wall injection molding process, key benefits, design recommendations, material options, and challenges encountered in practice. Whether you are a product engineer, a design consultant, or a procurement manager looking to outsource manufacturing, understanding the fundamentals of thin wall molding is crucial for project success.

What Is Thin Wall Injection Molding?

Thin wall injection molding is a specialized form of conventional injection molding where the primary goal is to reduce the wall thickness of a part without compromising its function or manufacturability. While there is no strict standard, a part is generally considered thin-walled when the ratio of flow length to wall thickness exceeds 150:1, or when the wall thickness falls below 1 mm for small parts or below 2 mm for larger parts.

The reduced thickness means molten plastic must be injected at higher speeds and pressures to ensure complete filling of the mold cavity before the material solidifies. This requirement leads to changes in both the machine specifications and the mold design compared to standard injection molding setups.

Thin wall parts are common in products that require compactness, portability, or material efficiency. Examples include food containers, medical syringes, laptop housings, mobile phone components, and automotive interior trims.

Key Benefits of Thin Wall Injection Molding

Thin wall injection molding is widely adopted because of the tangible advantages it provides, especially for large-scale production environments:

Faster Production Cycles

One of the most compelling advantages is the reduction in cycle time. Thinner walls cool more quickly, enabling faster ejection from the mold and higher throughput. This is particularly beneficial for manufacturers who operate under tight delivery schedules or require high-volume output.

Reduced Material Consumption

Less plastic material is needed for each part, which not only cuts raw material costs but also contributes to environmental sustainability by minimizing waste and resource usage. For companies producing millions of parts annually, these savings can be substantial.

Lightweight Product Design

For industries like automotive and aerospace, where every gram matters, reducing component weight while maintaining strength is critical. Thin wall injection molding supports the development of lighter end-products, which can help meet fuel-efficiency and performance targets.

Enhanced Performance in Miniaturized Components

As products become more compact—particularly in the electronics and medical sectors—there is a growing need for precision-molded components with intricate features and thin profiles. This process supports the production of parts with fine details and minimal dimensional variation.

Cost Efficiency in High Volumes

While the tooling and machinery setup for thin wall molding can be more complex, the cost per part drops significantly in large production runs due to lower material use and shorter cycle times.

Design Considerations for Thin Wall Components

Creating successful thin wall parts requires upfront planning and a deep understanding of molding principles. The margin for error is smaller than in standard injection molding, so even minor design flaws can result in part failure or production issues.

Wall Thickness Guidelines

Uniformity in wall thickness is crucial. Sudden transitions or overly thin sections can lead to incomplete filling, warping, or stress concentrations. As a rule of thumb:

• Polypropylene: minimum 0.5 mm
• Polycarbonate: minimum 0.75 mm
• Nylon: minimum 0.6–0.8 mm

While thinner walls are technically possible, they increase the risk of short shots and require highly specialized equipment and molds.

Ribs, Bosses, and Corner Radii

To maintain structural strength without increasing overall wall thickness, reinforcing features like ribs and bosses should be strategically incorporated. Ribs should be no more than 60% of the adjoining wall thickness and should include generous draft angles to aid in mold release.

Sharp corners should be avoided, as they become stress concentrators and can interfere with material flow. Instead, use generous radii or chamfers to ensure even distribution of molten material.

Draft Angles and Ejection

Adequate draft angles—typically 1 to 2 degrees per side—are essential to prevent parts from sticking to the mold during ejection. This is even more important in thin wall designs where rigidity may be reduced, increasing the likelihood of part distortion or breakage during removal.

Material Selection for Thin Wall Injection Molding

The right material selection can make or break a thin wall molding project. Not all thermoplastics are suitable for thin wall applications due to differences in melt flow behavior, mechanical strength, and thermal stability.

Common Materials Used

• Polypropylene (PP): Excellent flow properties, commonly used in food packaging, containers, and disposable medical products.
• Polycarbonate (PC): High impact strength and dimensional stability, ideal for electronic housings and lenses.
• Nylon (PA): Strong and wear-resistant, used in automotive and mechanical components.
• Liquid Crystal Polymer (LCP): Ultra-high flowability and heat resistance, suitable for micro-electronic parts and connectors.

Key Material Properties to Consider

• Melt Flow Index (MFI): A higher MFI indicates better flowability, which is essential for filling thin sections.
• Thermal Resistance: Materials must maintain shape and strength at processing temperatures and during end-use.
• Shrinkage and Warpage Characteristics: Predictable shrinkage helps maintain dimensional tolerances.

When in doubt, simulation software can be used to predict material behavior during mold filling and cooling, reducing trial-and-error in tool design.

Tooling and Process Optimization

Mold design and process control are critical in thin wall injection molding. Because the walls are thin, there’s little time for molten plastic to flow before it starts solidifying, which places high demands on both tooling and equipment.

High-Speed Injection Machines

Standard injection molding machines may not be capable of the speeds and pressures required for thin wall parts. Machines used for this process must offer:

• High-speed injection (300 mm/s or more)
• High clamp force to counteract cavity pressure
• Precision controls for temperature, pressure, and injection speed

Mold Design Specifics

Thin wall molds must be designed for fast, even filling and quick heat dissipation. Important mold features include:

• Hot runner systems to maintain consistent melt temperature and reduce cycle time
• Balanced flow channels to ensure all cavities fill simultaneously
• Efficient cooling channels to promote uniform cooling and minimize warpage

Simulation and Quality Control

Mold flow analysis helps predict issues such as weld lines, air traps, and short shots before physical tooling begins. Once production starts, continuous monitoring of part weight, dimensions, and visual quality is necessary to maintain consistency.

Common Challenges and How to Overcome Them

Despite its advantages, thin wall injection molding presents unique technical challenges that must be addressed early in the design and manufacturing process.

Short Shots and Flow Hesitation

Thin walls increase the risk of incomplete filling. Using high-flow materials, optimizing gate location, and increasing injection speed can help prevent short shots.

Warpage and Shrinkage

Uneven cooling and poor mold design can lead to warping, which affects part assembly and aesthetics. Proper cooling channel layout and uniform wall thickness can mitigate these issues.

Flashing

High injection pressures required for thin wall parts can cause flashing if the mold is not tightly sealed or if the venting is inadequate. Precision tooling and regular mold maintenance are essential to avoid this defect.

Applications of Thin Wall Injection Molding

Thin wall injection molding finds extensive use across a wide range of industries that demand lightweight, compact, and high-precision plastic parts. These applications benefit from the process’s ability to produce thin, complex geometries at scale without sacrificing structural integrity.

Electronics

Consumer electronics and telecom devices often require small, lightweight, and durable plastic housings and internal components. Thin wall molding is ideal for producing battery casings, connectors, switches, and enclosures for smartphones, tablets, and laptops. The process supports tight tolerances, enabling seamless assembly and protection of delicate circuits.

Medical Devices

In the medical field, disposable items such as syringe bodies, IV catheter components, diagnostic housings, and sample containers must be manufactured with precision and sterility in mind. Thin wall molding ensures cost-effective mass production while maintaining the part clarity, dimensional consistency, and strength required for medical use.

Automotive

Modern vehicles rely on lightweight materials to improve fuel efficiency and meet emission standards. Thin wall injection molding enables the production of interior trim, HVAC ducts, electronic control module housings, and under-hood components where space constraints and performance requirements coexist.

Food and Consumer Packaging

Food-grade containers, takeaway lids, and storage boxes benefit from thin wall molding due to the need for cost-efficiency and rapid cycle times. Polypropylene and other food-safe materials are commonly used, and the resulting products are often recyclable, enhancing their environmental appeal.

Industrial and Electrical

Thin wall parts are also used in various industrial applications such as gear enclosures, instrument covers, control panel housings, and high-performance electrical connectors. The combination of material flexibility and rapid production allows manufacturers to meet diverse functional requirements while reducing lead times.

Why Choose CSMFG for Thin Wall Injection Molding Services?

At CSMFG, we understand the precision and technical challenges involved in thin wall injection molding. With decades of experience serving global clients across industries, our team delivers exceptional results in complex, high-speed, high-volume molding projects.

Precision Engineering and Tooling

Our in-house engineering team collaborates closely with customers to optimize part geometry for manufacturability. We apply advanced design-for-manufacturing (DFM) principles, mold flow simulations, and quality checks throughout the development process to ensure mold and part precision.

High-Speed Injection Molding Capabilities

We operate a fleet of modern injection molding machines equipped with high-speed and high-pressure capabilities, ideal for thin wall applications. Our machines support fast injection rates, precise temperature control, and high clamping forces required to fill narrow cavities with minimal cycle time.

Material and Process Expertise

CSMFG has extensive experience working with flow-optimized materials such as polypropylene, polycarbonate, LCP, and specialty nylons. Our team can advise on the most suitable material for your specific product requirements, whether you need chemical resistance, dimensional stability, or high optical clarity.

Quality Assurance and Certification

All parts undergo strict quality control protocols, including dimensional inspection, flash detection, tensile and impact testing, and color or clarity verification when applicable. We are ISO-certified and can comply with industry-specific standards for automotive, medical, and consumer goods.

Rapid Prototyping to Mass Production

From early-stage prototypes to full-scale production runs, we offer flexible services that scale with your needs. Our integrated manufacturing model ensures consistency, fast turnaround, and competitive pricing whether you require thousands or millions of parts.

Global Logistics and Customer Support

With a strong logistics network and bilingual support team, CSMFG serves clients across North America, Europe, and Asia. We handle international shipping, customs documentation, and after-sales service to simplify your supply chain.

Partner with CSMFG to gain a reliable manufacturing partner that delivers consistent quality, precision, and efficiency in every thin wall injection molding project.

Conclusion

Thin wall injection molding is a high-performance manufacturing process that enables fast, cost-effective production of lightweight, compact, and precise plastic components. From medical syringes and smartphone housings to automotive connectors and food packaging, it supports a diverse range of applications that demand advanced engineering and flawless execution.

However, success in thin wall molding requires more than just standard tooling. It calls for high-speed equipment, experienced design support, suitable material selection, and rigorous quality control. By understanding the principles and challenges discussed in this guide, engineers and procurement teams can better plan, design, and execute their next thin wall project.

If you are seeking a reliable partner for high-volume, high-precision plastic part manufacturing, contact CSMFG today. Our expertise in thin wall injection molding can help you optimize performance, reduce cost, and accelerate your time to market.

FAQs

What is considered a thin wall in injection molding?

A part is typically classified as “thin wall” when the wall thickness is less than 1 mm for small parts or less than 2 mm for larger parts, or when the flow length-to-thickness ratio exceeds 150:1. This threshold varies depending on the material and application but generally requires high-speed, high-pressure injection to fill the mold effectively.

Which materials are best for thin wall injection molding?

High-flow thermoplastics are best suited for thin wall applications. These include polypropylene (PP), polycarbonate (PC), liquid crystal polymer (LCP), polystyrene (PS), and some grades of nylon (PA). The ideal material should have high melt flow rate, dimensional stability, and sufficient mechanical strength for the intended application.

What are the primary challenges in thin wall molding?

The main challenges include short shots, warpage, sink marks, and flashing. These issues stem from rapid cooling, high injection pressures, and the limited window for mold filling. To mitigate these challenges, precise mold design, high-speed machinery, uniform wall thickness, and material optimization are essential.

How does mold design differ for thin wall parts?

Mold design for thin wall parts must accommodate fast injection and even material distribution. This includes optimized gate locations, hot runner systems, balanced flow paths, and enhanced cooling channels. The molds also require tight tolerances and high surface hardness to withstand repeated high-pressure cycles.

Can CSMFG help with design optimization for thin wall parts?

Yes, CSMFG offers end-to-end design support including DFM analysis, mold flow simulation, and prototype development. Our engineering team can identify potential issues in part geometry, suggest modifications for better manufacturability, and help you select the right material and process parameters for your application.

The post Thin Wall Injection Molding – A Guide for Lightweight Parts first appeared on Supply CSMFG.

<p>The post Thin Wall Injection Molding – A Guide for Lightweight Parts first appeared on Supply CSMFG.</p>

In the world of metal part manufacturing, selecting the right process is critical to achieving optimal performance, cost-efficiency, and scalability. Among the many fabrication methods available, two that are frequently compared are Metal Injection Molding (MIM) and Die Casting. Both processes are capable of producing intricate parts with high precision, but they differ significantly in their methodology, material compatibility, and best-use cases.

This guide aims to provide engineers, OEM procurement managers, and product developers with a detailed, side-by-side technical analysis of metal injection molding vs die casting. By understanding how each process works, what materials are suitable, and the trade-offs involved, decision-makers can make informed choices that align with product requirements and manufacturing goals.

Whether you are developing components for medical devices, automotive systems, or industrial machinery, choosing the correct manufacturing process early in the design cycle can significantly influence the end product’s quality, cost, and lead time.

What Is Metal Injection Molding (MIM)?

Metal Injection Molding is a precision metalworking process that combines the benefits of plastic injection molding and powder metallurgy. It is particularly effective for manufacturing small, complex-shaped metal parts in large quantities. MIM allows for tight tolerances and high material utilization with minimal machining after molding.

MIM Process Explained

The MIM process begins with the formulation of a feedstock. This is a homogeneous mixture composed of very fine metal powders (typically under 20 microns in particle size) and thermoplastic binders. The feedstock is granulated and then injected into molds using standard injection molding machines under high pressure.

Once the part is molded into its “green” shape, it undergoes a debinding process to remove the binders. This step is crucial and must be carefully controlled to prevent defects or distortion. The remaining structure, known as the “brown” part, is then subjected to sintering, which involves heating it to 90-95% of the metal’s melting point in a controlled atmosphere furnace.

During sintering, the particles bond together to create a dense, solid metal component. Dimensional shrinkage occurs (typically around 15-20%), but the process is predictable and controllable with the proper design allowances.

Common Materials Used in MIM

MIM is compatible with a wide range of metals, including:

• Stainless steel (17-4PH, 316L)
• Tool steels (M2, T15)
• Low alloy steels
• Titanium alloys
• Cobalt-chrome alloys
• Magnetic alloys

The ability to mold and sinter such high-performance materials makes MIM especially valuable in industries where strength, corrosion resistance, or magnetic properties are required in miniature formats.

Advantages of MIM

Metal injection molding offers several advantages:

1. Design Complexity: MIM can produce parts with complex geometries, including internal channels, undercuts, and fine surface features that are difficult or expensive to machine.
2. Material Properties: The sintered parts have excellent mechanical properties comparable to wrought materials, often achieving 95–98% of theoretical density.
3. Tight Tolerances and Smooth Surfaces: MIM yields near-net-shape parts with minimal post-processing.
4. High Volume Efficiency: Once tooling is in place, MIM supports high-speed, high-volume production.

Limitations of MIM

Despite its many benefits, MIM also has some limitations:

• Size Constraints: It is best suited for small parts, generally less than 100 grams.
• Upfront Tooling Cost: The mold design and fabrication can be costly, making it uneconomical for low-volume production.
• Longer Lead Times for New Projects: The need for precise feedstock development and sintering profiles can increase development time compared to other methods.

What Is Die Casting?

Die casting is a traditional metal manufacturing process in which molten metal is injected into reusable steel molds (dies) under high pressure. It is best known for its ability to produce parts with excellent dimensional accuracy and surface quality, especially for non-ferrous metals such as aluminum, magnesium, and zinc.

Die Casting Process Overview

The die casting process involves several key steps. First, the chosen metal is heated until it reaches a fully molten state. The molten metal is then injected at high speed and pressure into a steel mold cavity. After the metal solidifies, the die opens, and the part is ejected.

There are two main types of die casting:

• Hot chamber die casting: Used for metals with low melting points like zinc and magnesium.
• Cold chamber die casting: Used for metals with higher melting points, such as aluminum and copper alloys.

Secondary operations such as trimming, machining, or surface finishing may follow to meet final part specifications.

Common Die Casting Materials

Die casting works well with the following metals:

• Aluminum alloys (A380, A360)
• Zinc alloys (Zamak 3, Zamak 5)
• Magnesium alloys
• Some copper-based alloys (less common due to tool wear)

Each alloy offers unique characteristics in terms of strength, weight, corrosion resistance, and cost.

Advantages of Die Casting

Die casting is widely adopted in industries such as automotive, consumer electronics, and appliances due to its numerous advantages:

1. Speed: Short cycle times make it ideal for medium to high production runs.
2. Dimensional Accuracy: Die cast parts often require little or no machining after casting.
3. Excellent Surface Finish: Parts emerge with smooth surfaces that can be painted or plated.
4. Low Per-Part Cost: Especially when amortized over large quantities.

Limitations of Die Casting

Die casting, while efficient, has certain drawbacks:

• Material Limitation: It is generally limited to low-melting-point, non-ferrous metals.
• Tooling Wear: Steel dies are subject to wear, especially when casting more abrasive alloys.
• Porosity Risk: Air entrapment during injection can lead to porosity, affecting strength and machinability.
• Weight and Size Restrictions: Although better than MIM for larger parts, die casting still has constraints for extremely large or thick components.

Side-by-Side Comparison: Metal Injection Molding vs Die Casting

Part Size and Complexity

Metal Injection Molding excels at producing very small, highly complex parts with intricate details and fine features that are challenging for die casting. MIM can handle undercuts, thin walls, and internal cavities with ease due to the powder-based molding and sintering process. Die casting, in contrast, is better suited for larger parts with simpler geometries. While it can produce complex shapes, it struggles with extremely fine details and thin sections.

Mechanical Properties

MIM parts typically achieve higher density and better mechanical properties compared to die cast components. The sintering process produces parts with tensile strength, hardness, and fatigue resistance close to wrought metals. Die cast parts can suffer from porosity and internal defects which may reduce strength, although certain alloys like aluminum die castings still offer good performance for many applications.

Tolerances and Surface Finish

Both processes deliver good dimensional accuracy and smooth surfaces. MIM parts tend to have tighter tolerances and finer surface finishes as a result of the injection molding step combined with sintering shrinkage control. Die cast parts can achieve excellent finishes but often require secondary machining or surface treatment to meet the highest precision needs.

Production Volume and Cost

Die casting is generally more cost-effective for very high volume production runs because of its rapid cycle times and durable tooling. MIM has higher tooling costs and longer setup times, making it better suited for medium to high volumes where complexity justifies the expense. For low volume or prototype runs, both can be costly compared to other manufacturing methods like CNC machining.

Suitable Applications

• MIM is widely used in medical devices, firearms components, fine mechanical parts, and small automotive parts where precision and material properties are critical.
• Die casting is common in automotive housings, consumer electronics shells, appliance parts, and large volume enclosures where size and speed matter.

How to Choose Between MIM and Die Casting for Your Project

Key Factors to Evaluate

• Design Complexity: For intricate geometries and small detailed parts, MIM is usually preferred.
• Production Scale: High-volume runs with larger parts often favor die casting.
• Budget: Consider tooling and setup costs relative to production volume and complexity.
• Mechanical Requirements: MIM offers superior strength and density for demanding applications.

Real-World Example Use Cases

• Medical Components: Tiny surgical tools or implants requiring biocompatibility and strength are ideal for MIM.
• Automotive Parts: Larger engine housings and structural components are commonly produced via die casting.

Why Partner with CSMFG for Custom Metal Parts

End-to-End Manufacturing Solutions

CSMFG offers comprehensive metal fabrication services including design consultation, prototyping, and full-scale production. Whether you require metal injection molding or die casting, our team helps you select the optimal process based on your unique product requirements.

Expertise in Both MIM and Die Casting

Our advanced manufacturing capabilities span both MIM and die casting technologies. This flexibility allows us to recommend and deliver hybrid solutions when projects demand combining strengths of both processes.

Strict Quality Control and Global Export Capability

CSMFG adheres to rigorous ISO-certified quality management systems with thorough dimensional inspection and material testing. We support fast lead times and can ship globally, ensuring your supply chain runs smoothly.

Conclusion

Metal Injection Molding and Die Casting are both powerful manufacturing methods with unique strengths. MIM is unmatched for producing complex, high-strength, small parts, while die casting offers rapid production of larger parts with excellent surface quality. Careful evaluation of part size, complexity, material requirements, and production volume will guide you to the best choice.

Partnering with experienced manufacturers like CSMFG ensures you leverage the full advantages of each process while maintaining quality and cost-effectiveness. Reach out to us to discuss your next project and discover how we can support your metal part manufacturing needs.

FAQ

Which process is more cost-effective for high-volume production?

Die casting typically offers lower per-part costs at very high volumes due to faster cycle times and durable tooling. MIM’s higher tooling and processing costs make it more suitable for complex parts rather than ultra-high volume low-complexity parts.

Can both processes use stainless steel?

MIM commonly uses stainless steel powders and produces parts with excellent stainless steel properties. Die casting, however, generally cannot process stainless steel due to its high melting point.

Is MIM stronger than die casting?

Generally yes. MIM parts achieve near-wrought density and mechanical properties through sintering, whereas die cast parts may have porosity and lower strength.

What is the minimum order quantity for MIM and die casting at CSMFG?

Minimum order quantities vary based on part complexity and tooling requirements. Contact CSMFG for a detailed quote tailored to your specific part.

The post Metal Injection Molding vs Die Casting: A Comparison Guide first appeared on Supply CSMFG.

<p>The post Metal Injection Molding vs Die Casting: A Comparison Guide first appeared on Supply CSMFG.</p>

What Is Automotive Plastic Injection Molding?

Automotive plastic injection molding is a manufacturing process that involves injecting molten plastic into a metal mold cavity under high pressure. Once cooled and solidified, the mold opens to eject a precisely shaped component that meets tight dimensional tolerances.

This process is particularly well-suited for the automotive industry due to its ability to mass-produce identical parts with high consistency, speed, and cost control. It’s commonly used for:

• Interior components: dashboards, air vents, center consoles
• Exterior parts: bumpers, grilles, mirror housings
• Under-the-hood applications: fluid reservoirs, fuse boxes, engine covers
• Safety and electrical systems: clips, mounts, brackets, sensor enclosures

The repeatability of injection molding makes it ideal for high-volume automotive production, where exact specifications and durability are critical.

Key Materials Used in Automotive Plastic Injection Molding

Material selection is a critical part of the automotive plastic injection molding process. Each plastic resin offers unique mechanical, thermal, and chemical properties that determine its suitability for specific applications.

1. ABS (Acrylonitrile Butadiene Styrene)

• Widely used for interior trim due to its strength and aesthetic finish
• Offers good impact resistance and moderate heat tolerance

2. Polypropylene (PP)

• Lightweight and chemically resistant
• Ideal for battery casings, splash shields, and fluid containers

3. Polycarbonate (PC)

• Extremely durable and transparent
• Used in headlamp lenses and interior panels requiring high clarity

4. Nylon (Polyamide, PA6 or PA66)

• Excellent mechanical strength and high-temperature resistance
• Commonly used for under-hood components and connectors

5. PBT (Polybutylene Terephthalate)

• High dimensional stability and electrical insulation properties
• Preferred for sensors, switches, and housings in electronic systems

6. Thermoplastic Elastomers (TPE)

• Flexible and rubber-like, often used for gaskets, seals, and handles

The automotive industry often blends or reinforces these plastics with glass fibers, flame retardants, or UV stabilizers to meet stringent performance requirements.

Design Considerations for Automotive Plastic Parts

Designing for injection molding in the automotive sector requires careful attention to structural integrity, manufacturability, and function. Engineers must optimize part geometry to ensure it performs under load, fits into assemblies, and can be molded efficiently.

1. Wall Thickness and Uniformity

Uneven wall thickness can lead to warping, sink marks, and cooling defects. Designers typically aim for uniform thickness between 1.5 to 4 mm depending on the material.

2. Draft Angles

Draft (tapered walls) is essential for easy part ejection. Without draft, components may stick to the mold and cause surface damage or delays.

3. Ribs and Bosses

Structural features such as ribs add strength without significantly increasing weight. Bosses serve as mounting points but must be properly supported to avoid sink marks.

4. Undercuts and Complex Geometries

Features that prevent straight ejection may require slides or lifters in the mold design. While they increase tooling cost, they allow for more complex shapes.

5. Tolerance Requirements

Automotive applications often demand tolerances as tight as ±0.05 mm. Shrinkage must be accounted for during mold design, especially for glass-filled materials.

6. Overmolding and Insert Molding

These advanced techniques combine multiple materials or embed metal inserts directly into the plastic part during molding. This is commonly used for creating soft-touch grips or electronic housings with terminals.

Design for manufacturability (DFM) principles must be followed from the earliest stages of part development to ensure tooling feasibility and production efficiency.

Benefits of Plastic Injection Molding in the Automotive Industry

The advantages of plastic injection molding extend beyond cost savings and production speed. In the automotive industry, performance, durability, and compliance with regulations are equally important.

1. Lightweighting for Improved Fuel Efficiency

Plastic components significantly reduce vehicle weight compared to metal, contributing to lower fuel consumption and CO₂ emissions. With the rise of electric vehicles (EVs), reducing mass becomes even more crucial for extending range.

2. High Volume Production Efficiency

Once the mold is built, the per-part production cost is extremely low. Cycle times range from a few seconds to a few minutes, allowing for thousands of units to be produced daily with minimal variation.

3. Complex Geometry and Integration

Injection molding enables the production of intricate designs that would be difficult or impossible with machining or stamping. It allows the integration of multiple functions into a single part, reducing assembly time and error.

4. Excellent Surface Finish and Aesthetic Flexibility

Parts can be molded in various textures, colors, and gloss levels, eliminating the need for secondary painting or polishing. Interior components especially benefit from this feature.

5. Chemical and Corrosion Resistance

Unlike metal, plastic does not rust or oxidize. This makes it ideal for fuel system parts, engine bay components, and weather-exposed trim.

6. Regulatory and Safety Compliance

Modern automotive plastics can meet stringent requirements for flammability, toxicity, and mechanical performance. Proper material selection ensures compliance with global standards like FMVSS, REACH, and RoHS.

Challenges and Quality Standards in Automotive Plastic Injection Molding

Despite its many advantages, plastic injection molding for automotive applications comes with a unique set of technical and operational challenges. Manufacturers must address these proactively to ensure compliance with the stringent quality standards required by the automotive sector.

1. Warpage and Dimensional Instability

As parts cool unevenly, warping can occur—especially in large or asymmetrical components. Mold flow simulation tools like Moldex3D or Autodesk Moldflow are used to predict and mitigate deformation during design.

2. Surface Defects

Common defects include sink marks, weld lines, jetting, and flash. These issues can compromise part aesthetics and performance, especially in interior components. Proper mold design, gate placement, and process control help eliminate such defects.

3. Material Shrinkage Management

Each plastic resin shrinks at a different rate during cooling. For example, PP may shrink up to 2.5%, while glass-filled nylons shrink less than 1%. Designers must factor this into CAD models to ensure post-molding accuracy.

4. High Tooling Investment

Although injection molding offers low per-unit costs, the upfront investment in steel molds is substantial—especially for complex automotive parts requiring multiple cavities or slides. This makes it critical to design molds for long service life.

5. Industry Certifications and Compliance

Automotive suppliers must often be certified to IATF 16949, an international standard for quality management systems in automotive production. Additional testing protocols may include dimensional inspections, thermal cycling, impact testing, and aging resistance.

Customization and Tooling for Automotive Projects

A major advantage of injection molding is its ability to produce fully customized parts tailored to the vehicle platform. Tooling plays a central role in determining part quality, production speed, and overall lifecycle cost.

1. Tool Design and DFM Optimization

Custom tooling begins with design-for-manufacturing (DFM) analysis, ensuring that part geometry aligns with best practices for injection molding. Elements like gate location, venting, ejection pins, and cooling channels are optimized before steel cutting begins.

2. Rapid Prototyping with Soft Tools or 3D-Printed Molds

Before committing to hardened steel molds, OEMs often use aluminum or hybrid molds for prototyping. This allows for short-run validation (T0, T1 samples) at a lower cost and faster turnaround—ideal for testing fit, function, and assembly.

3. Mold Life and Maintenance

High-volume automotive molds are built to last hundreds of thousands to millions of cycles. Routine maintenance—cleaning, polishing, and regrinding critical areas—ensures consistent quality and minimal downtime.

4. Flexible Production Models

Depending on the project scope, manufacturers may offer:

• Bridge tooling for medium-run production
• Family molds for multiple parts in a single cycle
• Multi-cavity molds for high-output efficiency

These models help balance cost, lead time, and scalability.

Automotive Plastic Injection Molding Trends and Innovations

The automotive sector is undergoing rapid transformation, and plastic injection molding is evolving to meet the changing demands of sustainability, electrification, and smart manufacturing.

1. Recycled and Bio-Based Plastics

OEMs are increasingly adopting post-consumer recycled (PCR) and bio-based resins to reduce environmental impact. These materials meet performance standards while aligning with ESG and carbon-reduction goals.

2. Integration with EV and Autonomous Vehicle Technologies

Plastic parts are essential in electric vehicles (EVs) for battery housings, cable management systems, and lightweight enclosures. Likewise, sensors and ADAS modules rely on molded housings for durability and electromagnetic shielding.

3. Digital Simulation and AI-Powered Optimization

Simulation software now incorporates machine learning to predict defects, optimize cooling, and reduce mold trial iterations. This shortens development cycles and improves first-pass yield.

4. Advanced Surface Texturing and In-Mold Decoration (IMD)

Automakers are pushing for higher in-cabin aesthetics. Technologies like IMD allow decorative films or textures to be applied directly inside the mold, eliminating secondary finishing steps.

Why Choose CSMFG for Automotive Plastic Injection Molding

CSMFG is a trusted custom manufacturing partner for automotive clients worldwide. With deep experience in plastic injection molding and precision tooling, we deliver reliable, scalable, and cost-efficient solutions tailored to modern vehicle requirements.

One-Stop Injection Molding Service

From product design support to tooling and production, CSMFG handles every stage of the process with tight quality control and material traceability.

Automotive-Grade Materials

We work with certified materials including UL-listed, RoHS-compliant, and automotive-grade thermoplastics from leading suppliers.

Tooling Expertise

Our mold engineers use industry-leading CAD/CAM tools and simulation software to produce high-performance molds with long service life.

Scalable Production

With flexible MOQs, fast prototyping, and support for both low-volume and mass production runs, we adapt to your development needs—whether you’re an OEM or a Tier 2 supplier.

Global Delivery and Communication

Based in China, we serve clients across North America, Europe, and Asia with responsive project management and multilingual technical support.

FAQs

What types of automotive parts are best suited for plastic injection molding?

Interior trims, housings, fluid reservoirs, brackets, clips, and under-hood components—especially those requiring high precision and volume production.

How long does it take to develop a mold for a new automotive part?

Typical lead times range from 4 to 8 weeks, depending on part complexity and material. Prototypes can be completed faster with soft tooling.

Can injection molded parts meet automotive safety standards?

Yes. With proper material selection and process control, molded parts can meet ISO, FMVSS, and IATF quality requirements.

How does injection molding compare to 3D printing for automotive use?

3D printing is useful for prototypes, but injection molding offers superior repeatability, strength, and surface finish for production volumes.

What is the typical production volume for automotive plastic parts?

Projects can range from 1,000-unit pilot runs to multi-million unit mass production, depending on vehicle model and part function.

The post ​​Automotive Plastic Injection Molding: Materials, Design & Benefits​ first appeared on Supply CSMFG.

<p>The post ​​Automotive Plastic Injection Molding: Materials, Design & Benefits​ first appeared on Supply CSMFG.</p>

Polycarbonate injection molding is the process of injecting melted polycarbonate—a tough, transparent, and heat-resistant thermoplastic—into precision molds to produce parts with exceptional mechanical strength and optical clarity. Its ability to combine impact resistance, dimensional stability, and flame retardancy makes it ideal for demanding applications in automotive, electronics, medical devices, and more.

In this article, we’ll explore the full scope of PC injection molding: how the process works, key material properties, design and processing guidelines, common molding issues, and real-world applications. Whether you’re an engineer optimizing part performance or a buyer evaluating production options, this guide offers practical insights to support technical and procurement decisions.

What Is Polycarbonate Injection Molding?

Polycarbonate injection molding is a specialized thermoplastic processing technique used to manufacture complex, high-performance plastic components by injecting molten polycarbonate (PC) resin into a precision-machined mold cavity under high pressure and controlled temperature. This process is particularly valuable for producing parts that require high optical clarity, superior mechanical strength, dimensional accuracy, and flame resistance.

Unlike commodity plastics, polycarbonate is an engineering-grade thermoplastic that offers a unique combination of toughness, transparency, and heat resistance. These attributes make it suitable for safety-critical and mechanically demanding applications across various industries—including automotive, aerospace, electrical engineering, and medical technology.

Why Use Polycarbonate for Injection Molding?

Polycarbonate offers properties that are difficult to achieve with most other plastics. When processed correctly, molded PC components can withstand high impact forces, maintain structural integrity under elevated temperatures, and exhibit excellent clarity—all while meeting stringent regulatory and safety standards.

Key Advantages of Polycarbonate Injection Molding:

• High Impact Resistance: PC has one of the highest impact strengths among thermoplastics, with an Izod impact strength exceeding 600 J/m. This makes it ideal for load-bearing components, protective covers, and enclosures.
• Heat Resistance: The material retains dimensional stability and mechanical performance up to 135°C, allowing it to be used near engines, lighting fixtures, and electrical modules.
• Optical Clarity: Certain grades of polycarbonate offer light transmittance levels comparable to glass (up to 89%), making them suitable for lenses, light diffusers, and transparent guards.
• Flame Retardancy: With additives or in blended form, polycarbonate can meet UL 94 V-0 standards, supporting applications that require self-extinguishing properties and safety certifications.
• Regulatory Compliance: BPA-free and FDA- or ISO 10993-compliant PC grades are available for applications in food contact and medical diagnostics, including fluid delivery systems and drug housings.

Polycarbonate Material Properties and Molding Parameters

A successful PC molding operation depends not only on selecting the right material grade but also on optimizing processing parameters to avoid internal stress, warping, or optical defects. Below is a summary of typical molding properties:

One critical consideration in processing PC is moisture sensitivity. Polycarbonate is a hygroscopic material and will absorb water from the environment. Even a small amount of residual moisture can lead to hydrolysis, resulting in molecular degradation and yellowing. Therefore, material must be dried at 120°C for 4 to 6 hours, typically using a desiccant dryer, to ensure stability during injection.

Another consideration is shear sensitivity. Excessive shear during injection or high screw RPMs can degrade the polymer and cause internal stress or flow marks, particularly in optical applications.

Design Guidelines for Polycarbonate Injection Molding

Optimizing part geometry and mold design for PC is essential to harness its full performance potential while avoiding defects like warping, sink marks, or stress cracking. Below are key design recommendations:

1. Wall Thickness

Maintain uniform wall thickness between 1.0 mm to 3.5 mm to promote consistent cooling and reduce residual stress. Thicker walls may lead to long cooling times and internal voids, while thin walls risk incomplete filling, especially in complex geometries.

2. Gate Design

For polycarbonate, gate type and location directly influence flow behavior, aesthetics, and stress distribution. Edge gates, fan gates, and tab gates are commonly used. Hot runner systems are recommended for large production runs to reduce waste, maintain thermal consistency, and minimize post-processing.

• Tip: For optical-grade PC, gates should avoid direct contact with visible surfaces to prevent flow lines or weld marks.

3. Ribs and Bosses

To reinforce structures without excessive material buildup:

• Rib thickness should not exceed 60% of the adjoining wall to avoid sink marks.
• Incorporate fillets and radii at base junctions to improve flow and reduce stress concentration.
• Avoid placing bosses too close to walls, which can cause non-uniform cooling and part distortion.

4. Undercuts and Demolding

Due to PC’s rigidity and toughness, undercuts should be minimized unless necessary. Where unavoidable, use collapsible cores, lifters, or side actions to ensure clean ejection. Proper draft angles (typically 1° to 3°) must be included to aid demolding and protect part surfaces

Application Scenarios of Polycarbonate Injection Molding

Polycarbonate injection molding is widely recognized for its ability to deliver precision, clarity, and impact resistance in high-performance applications. Thanks to its favorable balance of mechanical and optical properties, polycarbonate is used in both structural and aesthetic components across a range of demanding industries.

Automotive Industry

Polycarbonate plays a critical role in lightweighting and durability initiatives within the automotive sector. It supports complex geometries while maintaining strength and transparency—attributes necessary for both exterior and interior applications.

• Headlamp lenses: PC’s optical clarity and impact resistance make it a superior alternative to glass, especially in high-vibration environments.
• Instrument panels and clusters: Transparent PC covers ensure visibility while protecting delicate electronics.
• Battery and electrical enclosures for EVs: Flame-retardant PC grades meet stringent safety standards while allowing design flexibility.

Medical Devices and Diagnostics

Due to its biocompatibility, clarity, and ability to be sterilized without significant degradation, PC is commonly used in medical-grade applications.

• Diagnostic device housings: PC’s dimensional stability ensures precise fit for electronic diagnostic systems.
• IV connectors and reservoirs: BPA-free polycarbonate grades conform to ISO 10993 and FDA requirements.
• Lab trays and containment units: The high stiffness and impact resistance protect samples during handling and centrifugation.

Electronics and Electrical Applications

Polycarbonate is an established material for enclosures and components in electronics, especially where heat resistance and transparency are essential.

• LED housings and lenses: Offers excellent light transmittance and durability.
• Optical storage media: Polycarbonate’s dimensional stability and low birefringence made it the base material for CDs and DVDs.
• Smartphone housings and covers: Combines visual appeal with drop resistance.

Consumer Products

Polycarbonate is frequently chosen for high-end consumer goods that demand both form and function.

• Safety goggles and eyewear: Shatter-proof, optically clear PC ensures safety without visual distortion.
• Reusable water bottles: BPA-free PC grades are lightweight, dishwasher-safe, and impact resistant.
• Food containers and kitchenware: Offers transparency and heat resistance with excellent fatigue behavior under repetitive use.

Polycarbonate vs. PMMA (Acrylic): Which Should You Choose?

While both polycarbonate (PC) and polymethyl methacrylate (PMMA)—also known as acrylic—are transparent thermoplastics, they serve different purposes depending on performance priorities and environmental constraints.

Acrylic (PMMA) is a better choice when optical perfection and UV resistance are primary concerns—such as in outdoor signage or lighting covers. However, PC is far superior in mechanical strength, thermal resistance, and flame retardancy, making it the preferred material for safety-critical applications.

Sustainability and Emerging Trends in Polycarbonate Injection Molding

With growing regulatory pressure and customer demand for sustainable solutions, the polycarbonate molding industry is evolving toward more environmentally responsible practices.

Bio-based and Recycled Polycarbonate Resins

Leading material manufacturers like Covestro and SABIC are introducing bio-attributed polycarbonate resins derived from renewable feedstocks, helping to reduce carbon footprint without sacrificing material performance.

• Recycled-content PC is now available for non-critical applications, supporting circular manufacturing goals.

Closed-Loop Recycling in Industry

Automotive and electronics sectors are increasingly implementing closed-loop systems that collect post-consumer or post-industrial PC scrap and reintegrate it into the supply chain—improving material utilization and reducing landfill waste.

Digital Optimization with AI

Modern injection molding operations are adopting AI-assisted process control systems to optimize cycle times, predict defects, and maintain consistent quality.

“The future of engineering plastics lies not only in performance, but in sustainability and digital optimization.”
— Dr. Liam Chen, Senior Polymer Process Engineer, PolymerTech Solutions

Common Defects in PC Molding and How to Avoid Them

Despite its advantages, polycarbonate can be sensitive to molding conditions. Improper processing often leads to visual or structural defects, which can be mitigated with the right preventative measures.

1. Splay Marks

Cause: Residual moisture in the resin vaporizes during injection, creating visible streaks or bubbles.
Solution: Always dry PC resin at 120°C for 4–6 hours using a desiccant dryer before molding.

2. Jetting and Flow Lines

Cause: High injection speed or undersized gate design can cause turbulent flow, resulting in wavy lines on the surface.
Solution: Use appropriate gate design, increase gate size if needed, and lower injection speed to allow uniform flow.

3. Yellowing

Cause: Excessive residence time in the barrel or incorrect temperature settings lead to thermal degradation of the polymer.
Solution: Use precise temperature control, avoid material stagnation, and ensure purging during long machine idle times.

4. Warping and Shrinkage

Cause: Inconsistent wall thickness or improper mold temperature settings.
Solution: Maintain uniform wall design and optimize mold temperature (preferably 80–120°C) for balanced cooling.

FAQs

Is polycarbonate safe for food contact applications?
Yes, food-grade BPA-free PC is FDA-compliant and widely used in containers and labware.

Can PC parts be overmolded?
Yes, PC can be overmolded with TPE or ABS, but requires compatible bonding and mold temperature control.

What’s the typical lead time for PC injection molded parts?
Depending on complexity, lead time ranges from 2–5 weeks for tooling and 1–2 weeks for production.

Conclusion

Polycarbonate injection molding remains a preferred choice for engineers, designers, and procurement professionals seeking high-performance thermoplastics with outstanding toughness, clarity, and design adaptability. Whether you’re developing critical components for automotive lighting, medical diagnostics, or next-generation electronics, PC offers a balance of mechanical strength, optical quality, and regulatory compliance that few materials can match.

Yet, extracting the full value from polycarbonate requires attention to material preparation, mold design, and processing control. Understanding these parameters ensures that your final parts perform reliably under mechanical, thermal, and environmental stress.

Need a Reliable Polycarbonate Molding Partner?

At CSMFG, we deliver custom polycarbonate injection molding solutions for precision-critical, high-volume, and high-specification applications. From design support to tooling and production, our team ensures quality, traceability, and cost-efficiency throughout the lifecycle of your project.

Contact us to discuss your PC injection molding requirements for expert insights on part optimization, gate selection, and performance benchmarking.

The post Polycarbonate Injection Molding: A Comprehensive Guide first appeared on Supply CSMFG.

<p>The post Polycarbonate Injection Molding: A Comprehensive Guide first appeared on Supply CSMFG.</p>

In today’s manufacturing landscape, micro injection molding has become a vital technology enabling the production of miniature plastic components with unparalleled precision. At the forefront of this revolution, companies like CSMFG are leveraging advanced micro molding machines and proprietary micro mold designs to meet the demanding needs of industries ranging from healthcare to electronics.

Unlike traditional injection molding, micro molding allows for the fabrication of parts with weights often less than a gram and features measured in microns. This capability unlocks new possibilities for product innovation, cost efficiency, and mass production at scales previously unimaginable.

This article will explore how micro injection molding reshapes key industries, showcasing the critical role of expert micromolders such as CSMFG who combine cutting-edge machinery and specialized processes to deliver quality, reliability, and scalability.

What is Micro Injection Molding?

Definition and Core Features

Micro injection molding refers to the manufacturing process designed to produce ultra-small, high-precision plastic components. Typical shot weights can be as low as 0.01 grams, with dimensional tolerances often within ±5 microns. This process requires sophisticated micro injection molding machines capable of precise control over material flow, temperature, and pressure.

At CSMFG, state-of-the-art micro molding equipment and tools are paired with expert craftsmanship to manufacture intricate micro molds with tight tolerances and specialized features such as micro gates and venting channels. The result is flawless, flash-free parts ideal for high-stakes applications.

Specialized Machinery and Tooling

The machinery used in micro molding is markedly different from standard injection molding equipment. High-precision screws, barrels, and injection units in micro molding machines enable controlled delivery of tiny material shots. These machines often integrate digital control systems and high-resolution sensors to maintain repeatability and reduce cycle times.

Tooling, a critical factor, involves precision machining methods like EDM or laser micro-machining to create micro molds with micron-level features. Micromolders such as CSMFG excel in producing these complex tools that accommodate challenging geometries and delicate ejection systems, ensuring high yield and part integrity.

Materials Used in Micro Injection Molding

Material selection is a cornerstone of successful micro molding. The materials must flow consistently into micro cavities while delivering required mechanical, thermal, or biocompatible properties.

Common polymers include:

• PEEK (Polyetheretherketone): Excellent for high-performance medical implants.

• LCP (Liquid Crystal Polymer): Preferred in electronics for dimensional stability.

• Polycarbonate (PC): Used for optical clarity in lenses and sensor housings.

• Polypropylene (PP) and Polyethylene (PE): For general-purpose disposable components.

• Liquid Silicone Rubber (LSR): Flexible, biocompatible material used in medical and wearable devices.

Additionally, liquid metal injection molding has opened new frontiers for micro-scale metal components, blending metal powders with binders to form intricate metal parts via micro mold tooling—a niche but growing sector.

At CSMFG, meticulous material selection combined with stringent quality protocols ensures each micro molded part meets or exceeds industry-specific standards, from electrical insulation in electronics to biocompatibility in healthcare.

Micro Injection Molding in Medical and Healthcare Devices

The healthcare industry represents one of the largest beneficiaries of micro injection molding technologies. Medical device manufacturers require parts with extreme precision, sterility, and biocompatibility—needs that micro molding uniquely satisfies.

Applications

• Microfluidic diagnostic chips that handle minute fluid volumes for rapid disease testing.

• Bioabsorbable implants made from medical-grade polymers like PEEK, requiring precise geometry and material consistency.

• Micro connectors and needle hubs for catheters and intravenous systems, produced in cleanroom environments.

• Wearable medical sensors casings, demanding lightweight, durable, and hypoallergenic materials.

• Surgical tool components like micro gears and miniature housings.

Micro Injection Molding in Electronics and Microelectronics

As electronic devices shrink and become more complex, the demand for micro-sized, highly precise components grows exponentially. Micro molding provides a reliable solution for producing these critical parts at scale.

Typical Components

• Micro connectors and ports used in smartphones and wearable devices.

• Optical components and LED lenses that require sub-micron surface finishes.

• Sensor housings and micro switches with strict electrical insulation needs.

• Battery components for ultra-compact IoT devices.

Using high-precision micro injection molding machines, manufacturers achieve unparalleled repeatability and cycle efficiency, enabling millions of parts per month with minimal waste and consistent quality. This scalability is essential for meeting the fast-paced demand in consumer electronics and telecommunications.

The post Key Industries Revolutionized by Micro Injection Molding first appeared on Supply CSMFG.

<p>The post Key Industries Revolutionized by Micro Injection Molding first appeared on Supply CSMFG.</p>

Plastic has become an invisible yet essential component of modern medicine. From the moment a patient enters a clinic to the most complex surgical interventions, plastic-based products are present in almost every aspect of care. Their lightweight nature, biocompatibility, and cost-effectiveness make them the material of choice in a wide range of medical applications.

At the heart of this plastic revolution lies injection molding—a manufacturing process that has transformed how medical devices are produced. By enabling the creation of high-precision, sterile, and mass-produced components, injection molding is indispensable to today’s global healthcare systems.

This article explores how injection molding uniquely supports the production of critical medical products. It ensures safety, reliability, and scalability, meeting the rigorous demands of both patients and healthcare providers.

Why Injection Molding is Indispensable for Medical Product Manufacturing

Meeting Stringent Medical Demands

Precision and Accuracy

In the medical field, precision is non-negotiable. Devices such as insulin pens, blood analyzers, and surgical tools rely on exact dimensions to function correctly. Injection molding enables tight tolerances and repeatable accuracy, which is crucial for both diagnostic and therapeutic applications.

Sterility and Hygiene

Single-use plastics are key in preventing cross-contamination between patients. Injection molding makes it possible to manufacture a wide range of disposable medical products—syringes, IV connectors, test kits—that are easy to sterilize and package in controlled environments. This reduces infection risks and ensures regulatory compliance.

Biocompatibility

Injection molding supports a wide range of biocompatible materials suitable for skin contact, short-term insertion, or even long-term implantation. Medical-grade polymers such as PEEK and silicone are commonly used for components that need to interact safely with human tissue or fluids.

Durability and Reliability

Medical devices must perform consistently under stress—be it in emergency rooms, surgical theaters, or homecare environments. Injection-molded parts are engineered for durability, whether they are single-use or reusable. This ensures operational stability and patient safety across various scenarios.

Economic and Production Advantages

Mass Production Capability

Injection molding excels at high-volume manufacturing. Once the tooling is in place, millions of identical components can be produced with minimal variation. This scalability is essential during public health crises, such as pandemics, where global demand for items like syringes, test kits, and PPE components surges dramatically.

Cost Efficiency

Although the initial investment in tooling can be significant, the per-unit production cost drops considerably over time. This cost efficiency makes injection molding a viable solution for both low-cost consumables and high-value precision instruments in the medical industry.

Design Flexibility

Modern medical devices are becoming increasingly complex, often combining multiple functionalities in a single product. Injection molding allows for the incorporation of intricate features, such as undercuts, thin walls, and tight-fitting joints, without sacrificing structural integrity.

Automation Potential

Injection molding is highly compatible with automated production lines. Robotics and computer-aided quality control systems reduce labor costs, minimize human error, and ensure consistent product quality. This level of automation is vital in meeting strict regulatory and cleanliness requirements.

Core Requirements for Medical Injection Molding

Medical-Grade Materials

A wide variety of thermoplastics are used in medical injection molding. Each material is selected based on its intended application and necessary performance characteristics:

• Polycarbonate (PC): Known for impact resistance and optical clarity; used in diagnostic devices and surgical instruments.
• Polypropylene (PP): Offers excellent chemical resistance and is commonly used in syringes and laboratory ware.
• Polyethylene (PE): Suitable for tubing and flexible containers due to its flexibility and toughness.
• PEEK: High-performance polymer used in implants and high-load-bearing components.
• Silicone: Ideal for soft-touch applications like catheters and seals.

All materials must undergo rigorous biocompatibility testing to ensure safety for human use. Standards such as USP Class VI and ISO 10993 guide the evaluation of cytotoxicity, sensitization, and systemic toxicity.

Strict Regulatory Compliance

Medical injection molding operates under some of the most stringent regulations in manufacturing. Key compliance areas include:

• FDA Quality System Regulations (21 CFR Part 820): Establishes good manufacturing practices (GMP) for medical devices sold in the United States.
• ISO 13485: An international standard outlining requirements for a quality management system specific to the medical device industry.
• Traceability Requirements: Every batch of raw materials and finished components must be traceable through detailed documentation, ensuring accountability in the case of recalls or performance issues.

Controlled Manufacturing Environments

Maintaining a sterile and contaminant-free environment is essential, particularly for products that contact blood, tissue, or mucous membranes.

• Cleanroom Manufacturing: Most medical injection molding takes place in ISO Class 7 or ISO Class 8 cleanrooms, which control particulate levels, airflow, temperature, and humidity.
• Environmental Monitoring: Advanced HVAC systems and HEPA filtration ensure a consistent cleanroom environment, minimizing the risk of airborne contamination.

Rigorous Quality Control and Validation

Quality is central to patient safety and regulatory compliance. Injection molding facilities must implement a robust validation and monitoring framework:

• Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ): These protocols validate the entire injection molding process before commercial production begins.
• In-Process Inspection: Automated vision systems and dimensional checks are often integrated into the production line to catch defects in real time.
• Lot-to-Lot Consistency: Through statistical process control (SPC) and regular audits, manufacturers ensure each production batch meets exacting standards with minimal variation.

Common Medical Products Made with Injection Molding

Injection molding supports a wide range of medical components across diagnostic, therapeutic, and surgical categories. Below是一些代表性产品类别：

Disposable Medical Supplies

• Syringes and Needle Hubs
  These are some of the most widely produced single-use medical items. Injection molding ensures airtight fitment, precise volume control, and smooth plunger operation—all crucial for safe drug administration.
• IV Components
  Connectors, drip chambers, and flow regulators require high clarity, chemical resistance, and leak-proof performance—all achieved through precision molding.
• Specimen Containers and Test Tubes
  Used in pathology and diagnostics, these items demand dimensional accuracy and chemical inertness to prevent sample contamination.

Surgical and Diagnostic Devices

• Catheters and Housings
  Soft-touch components such as catheter connectors and sensor housings benefit from biocompatible plastics like silicone or TPU, molded in sterile environments.
• Endoscopic Components
  Lightweight, miniaturized plastic parts are used in endoscopes, replacing heavier metal parts to enhance patient comfort and ease of use.
• Diagnostic Cartridges
  Many point-of-care test kits use microfluidic cartridges that rely on injection molding for precise internal channels and transparent materials.

Drug Delivery Devices

• Inhalers
  Metered-dose inhalers (MDIs) require intricate valve assemblies and aerosol chambers, all manufactured via multi-cavity molding for consistent function.
• Insulin Pens and Auto-Injectors
  These devices combine multiple molded components—outer casings, triggers, dose dials—to ensure safety, accuracy, and user-friendly operation.
• Infusion Pumps
  Housing components and tubing connections rely on molded parts that meet high mechanical and chemical resistance standards.

Laboratory and Hospital Equipment

• Petri Dishes and Pipette Tips
  High-volume production is essential in laboratory settings. Injection molding enables cost-effective scalability while maintaining sterile and consistent designs.
• Ventilator Parts
  During health crises like COVID-19, molded parts such as valves, filter housings, and mask components are produced at scale to meet urgent demand.

Customization and Complex Part Design

Injection molding not only enables mass production but also allows for highly customized medical solutions tailored to specific use cases.

Multi-Shot and Overmolding

Advanced techniques like two-shot molding and overmolding allow multiple materials or colors to be combined in a single part. This is especially useful in:

• Ergonomic grips for surgical instruments
• Integrated seals in diagnostic cartridges
• Soft-touch coatings on wearable medical devices

These methods reduce assembly time, enhance functionality, and improve patient comfort.

Micro Molding for Miniaturized Components

As medical devices become smaller and more portable, micro molding is increasingly used to produce parts as small as a few microns. Applications include:

• Tiny gears in drug delivery systems
• Microfluidic channels in lab-on-chip devices
• Precision valves for neonatal care equipment

Micro molding requires specialized machinery, tooling, and material control, making it a high-value niche in medical manufacturing.

Future Outlook: Sustainability and Smart Manufacturing

The medical industry is increasingly focusing on sustainability without compromising safety or compliance. Injection molding is evolving to meet these new priorities.

Sustainable Materials and Practices

• Biodegradable Polymers like PLA and PHA are being explored for short-term or disposable applications.
• Recyclable Medical Plastics are under development, especially in non-invasive applications.
• Closed-Loop Manufacturing Systems reduce material waste and energy use.

Integration with Smart Manufacturing

• Digital Twin Technology allows virtual simulation and real-time monitoring of injection molding lines.
• AI-Powered Quality Control enables predictive defect detection, minimizing batch failures.
• Automated Cleanroom Production ensures that even complex assemblies remain within sterility and quality standards.

As regulatory bodies also evolve to support greener initiatives, sustainable injection molding will play a central role in the next generation of medical products.

Partnering for Precision and Production

To meet the rigorous demands of the medical device industry, choosing the right manufacturing partner is paramount. CSMFG specializes in medical injection molding services, offering a unique blend of expertise, state-of-the-art technology, adavanced injection molding machines, and unwavering commitment to quality and regulatory compliance. We leverage advanced cleanroom manufacturing, work with a broad spectrum of biocompatible materials, and employ rigorous quality control processes to ensure every component meets the highest standards for safety and performance. From intricate disposable parts to complex diagnostic device housings, CSMFG is equipped to deliver scalable, cost-efficient, and precision-engineered solutions that accelerate your product’s journey from concept to market.

Ready to bring your essential medical product to life with trusted expertise? Contact CSMFG for an inquiry today!

Conclusion

Injection molding is the backbone of modern medical manufacturing, enabling the production of safe, scalable, and cost-efficient components. From disposable syringes to complex diagnostic devices, it supports the entire healthcare ecosystem with unmatched precision and flexibility.

As materials and technologies evolve, and as global demand for efficient and sustainable healthcare solutions increases, injection molding will remain at the forefront—supporting innovation, compliance, and patient safety in one of the world’s most vital industries.

Frequently Asked Questions (FAQ)

Q1: What are the most common materials used in medical injection molding?
A: Polycarbonate (PC), Polypropylene (PP), Polyethylene (PE), PEEK, and silicone are among the most commonly used medical-grade materials. They offer properties such as clarity, biocompatibility, flexibility, and chemical resistance.

Q2: Can injection molded medical parts be reused?
A: It depends on the application. Many devices are designed for single use to ensure sterility, while others—like surgical tool handles—can be sterilized and reused if made with suitable materials.

Q3: How are injection molded parts kept sterile?
A: Most are manufactured in ISO Class 7 or 8 cleanrooms and then sterilized using gamma radiation, ethylene oxide (EtO), or steam (autoclave), depending on the material’s tolerance.

Q4: What’s the lead time for developing a new medical injection molded part?
A: Typically, it ranges from 6 to 12 weeks, depending on part complexity, tooling design, validation processes, and regulatory requirements.

The post Essential Medical Products Made with Injection Molding first appeared on Supply CSMFG.

<p>The post Essential Medical Products Made with Injection Molding first appeared on Supply CSMFG.</p>

Take a moment to look around you. The casing of your phone, the keys on your keyboard, the cap on your water bottle — chances are, these plastic items were made using the same manufacturing method: injection molding. But why this method? What makes it the default choice for producing millions — sometimes billions — of identical parts?

In this article, we’ll explore the foundational reasons why injection molding has become indispensable in mass production, especially for plastic products. From speed and precision to scalability and material efficiency, injection molding offers a combination of benefits few other manufacturing processes can match.

By the end, you’ll not only understand how injection molding works, but also why it continues to dominate modern production lines around the world.

The Basics: How Injection Molding Works

At its core, injection molding is a manufacturing process for producing parts by injecting molten plastic into a mold. Once the plastic cools and hardens, the mold opens and the finished part is ejected. It’s a highly repeatable process ideal for large-volume production.

Key Process Steps:

1. Plasticization: Plastic pellets are fed into a heated barrel, where they melt into a liquid.

2. Injection: The molten plastic is injected under high pressure into a custom mold cavity.

3. Packing & Holding: Pressure is maintained to pack the material tightly and avoid shrinkage.

4. Cooling: The plastic solidifies into the shape of the mold.

5. Mold Opening & Ejection: The mold splits, and the completed part is ejected.

Core Components Involved:

• The Mold: Custom-built to define the part’s shape, often made from hardened steel or aluminum.

• Injection Molding Machine: Includes a clamping unit, an injection unit, and control systems.

• Raw Materials: Thermoplastics such as ABS, polypropylene, nylon, and polycarbonate are common due to their ease of processing and versatility.

Despite its mechanical complexity, the core concept is simple: melt, inject, cool, repeat — and do it fast, with high precision.

Five Core Advantages Driving Injection Molding’s Mass Production Dominance

So what exactly makes injection molding the backbone of global plastic part production? Here are the five main reasons:

A. Unmatched Cost-Effectiveness

1. Economies of Scale: Once the mold is built, producing each additional unit becomes exponentially cheaper. For runs of 10,000+ units, injection molding is often the most economical option available.

2. Material Efficiency: The process generates very little waste. Excess plastic can often be reground and reused — a significant cost and sustainability benefit.

3. High Automation Potential: Modern injection molding machines are designed for lights-out manufacturing. Robots can handle part removal, inspection, and even packaging, dramatically reducing labor costs.

B. Incredible Production Speed and Efficiency

1. Rapid Cycle Times: Depending on part complexity and size, a single cycle can be as short as a few seconds — translating to thousands of parts per day from a single mold.

2. 24/7 Continuous Production: Once setup is complete, machines can operate continuously with minimal downtime, meeting tight deadlines and large-order requirements.

C. Superior Design Freedom and Complexity

1. Complex Geometries: Injection molding allows for intricate internal and external features, such as snap-fits, undercuts, and living hinges — all in a single molding cycle.

2. Precision Tolerances: Tight dimensional control ensures consistent part quality, critical for industries like automotive and medical.

3. Part Consolidation: Multiple components can be combined into a single part, reducing the need for post-production assembly and increasing overall efficiency.

D. Wide Material Selection and Performance Versatility

1. Vast Polymer Range: From rigid, impact-resistant polycarbonate to flexible elastomers, manufacturers can choose materials tailored to mechanical, thermal, and chemical requirements.

2. Color and Surface Finishes: Pigments can be added directly to raw material, and the mold surface can be textured to create matte, glossy, or patterned finishes without secondary operations.

E. High Quality and Batch Consistency

1. Exceptional Repeatability: Once the process is dialed in, every part produced is virtually identical to the last, a necessity for high-standard industries like aerospace and medical.

2. Low Defect Rates: Injection molding is a mature process, supported by decades of tooling knowledge, advanced simulation software, and process monitoring systems that keep defect rates low.

Typical Applications: Ubiquitous Injection-Molded Products

The power of injection molding is perhaps best illustrated by its incredible range of applications. From everyday consumer items to high-performance industrial components, this process is used across nearly every sector.

A. Electronic Housings

Devices like smartphones, laptops, and remote controls rely heavily on precision-molded plastic enclosures. Injection molding ensures consistent fit, sleek aesthetics, and protection for sensitive internal electronics.

B. Automotive Parts

Injection molding plays a critical role in producing durable and lightweight automotive components. Dashboards, door panels, interior trims, clips, and under-the-hood plastic parts are all commonly manufactured using this method.

C. Medical Devices

In a field where hygiene and precision are non-negotiable, injection molding delivers. It is used to produce disposable syringes, diagnostic equipment, petri dishes, and housings for electronic medical tools with tight tolerance requirements.

D. Consumer Goods & Toys

From reusable water bottles to plastic hangers and LEGO bricks, injection molding enables scalable, cost-effective production with excellent consistency — even for intricate designs.

E. Packaging Industry

The high-speed nature of injection molding makes it perfect for packaging. Bottle caps, cosmetic containers, food-grade lids, and pharmaceutical packaging are commonly produced at scale with minimal defect rates.

Challenges and Outlook: The Future of Injection Molding

Despite its many strengths, injection molding isn’t without challenges. Addressing these issues will define its role in future manufacturing landscapes.

A. Current Challenges

1. High Tooling Costs: The upfront cost of designing and manufacturing custom molds can be substantial, which is a barrier for small production runs or startups.
2. Environmental Pressure: While the process is material-efficient, it still relies heavily on petroleum-based plastics, raising concerns about long-term sustainability.
3. Energy Consumption: Large-scale operations can consume significant electricity, especially when older or inefficient equipment is used.

B. Future Trends

1. Biodegradable and Recycled Materials: Manufacturers are increasingly exploring biodegradable polymers and recycled resins to reduce environmental impact.
2. Smart Manufacturing & IoT Integration: Advanced sensors and machine learning are enhancing quality control, predictive maintenance, and real-time process optimization.
3. 3D Printing Integration: Hybrid approaches are emerging, where 3D printing is used for prototyping and low-volume production, while injection molding handles scaling.

These developments aim to make injection molding smarter, greener, and even more cost-effective — keeping it at the center of next-gen mass production.

Conclusion: Understanding Injection Molding, Grasping the Foundation of Modern Manufacturing

Injection molding’s dominance in mass production isn’t accidental — it’s the result of a finely tuned process that balances cost-efficiency, production speed, material flexibility, design complexity, and consistency.

Its unparalleled ability to produce high volumes of complex plastic parts — accurately and affordably — has made it the foundation of modern product manufacturing.

As industries evolve, so will injection molding, integrating new materials, digital technologies, and sustainable practices. But one thing is clear: for any manufacturer aiming to scale efficiently, injection molding remains a go-to solution.

Its unparalleled ability to produce high volumes of complex plastic parts — accurately and affordably — has made it the foundation of modern product manufacturing. Companies like CSMFG exemplify this by offering comprehensive injection molding solutions that enable businesses to scale production efficiently while maintaining high standards of quality and innovation.

As industries evolve, so will injection molding, integrating new materials, digital technologies, and sustainable practices. But one thing is clear: for any manufacturer aiming to scale efficiently, injection molding remains a go-to solution.

The post Why Mass Products Are Made with Injection Molding? first appeared on Supply CSMFG.

<p>The post Why Mass Products Are Made with Injection Molding? first appeared on Supply CSMFG.</p>

Should your next plastic product be blow molded or injection molded? This isn’t just a choice between two manufacturing methods—it’s a strategic decision that will shape your product’s design, cost-efficiency, and market performance.

At its core, the difference lies in what each process is designed to do: injection molding excels at creating complex solid parts, while blow molding specializes in producing thin-walled, hollow plastic items.

In this in-depth guide, we will go far beyond surface-level comparisons. We’ll explore how each process performs in terms of design flexibility, cost, sustainability, material compatibility, and cutting-edge innovations. By the end, you’ll have the tools and insights to choose the right molding process tailored to your specific needs.

You will learn how to align product requirements with the appropriate manufacturing method, optimize your production investment, and make decisions that factor in long-term environmental and economic impact.

2. Blow Molding: The Inside Story

2.1 What is Blow Molding?

Blow molding is a plastic forming process used to create hollow parts by inflating a heated plastic tube, called a parison or preform, inside a mold cavity.

The technique dates back to the 1930s, credited to inventors Enoch Ferngren and William Kopitke. It evolved dramatically with the introduction of high-density polyethylene (HDPE) and polyethylene terephthalate (PET), which enabled large-scale production of lightweight, durable containers.

2.2 How Blow Molding Works: Step-by-Step

1. Extrusion of the Parison: A molten tube of plastic (parison) is extruded vertically.
2. Mold Closing and Inflation: The mold closes around the parison, and air is injected to expand it against the mold walls.
3. Cooling: The inflated plastic is cooled within the mold to maintain its shape.
4. Ejection and Trimming: The cooled part is ejected, and any excess plastic (flash) is trimmed.

Key Equipment:

• Extruder
• Blow mold
• Pneumatic system

This process is best visualized through animations showing the parison expanding into a mold and cooling into shape.

2.3 Common Applications of Blow Molding

• Bottles (water, detergent, juice)
• Automotive fuel tanks
• Medical containers
• Toys (e.g., beach balls, hollow toy parts)

2.4 Unique Advantages of Blow Molding

• One-piece hollow structures: Ideal for tanks, containers, and bottles.
• Lower mold cost: Less complex molds due to lower operating pressure.
• Large component manufacturing: Handles large hollow parts more easily.
• Design freedom for wall thickness: Reasonable control over uniformity.

2.5 Limitations of Blow Molding

• Limited complexity: Not suitable for highly intricate internal geometries.
• Wall thickness variations: Especially near corners and bottom.
• Secondary trimming needed: Excess flash must be removed post-molding.
• Thermoplastic only: Limited to specific polymers.

3. Injection Molding: Precision & Power

3.1 What is Injection Molding?

Injection molding involves injecting molten plastic into a steel mold under high pressure. It then cools and solidifies into a final part shape.

The roots of this technology trace back to John Wesley Hyatt in the 1870s, with major innovations by James Watson Hendry in the 1940s introducing screw injection and precision temperature control.

3.2 Injection Molding Workflow: Step-by-Step

1. Melting/Plasticizing: Plastic pellets are melted in a heated barrel.
2. Injection: The molten material is forced into a mold cavity.
3. Holding and Cooling: The part is held under pressure as it cools.
4. Ejection: The mold opens and the part is ejected.

Key Equipment:

• Injection unit (screw)
• Mold with cavity/core
• Clamping unit

3.3 Common Injection Molded Products

• Automotive components (dashboards, bumpers)
• Consumer electronics (phone cases, laptop enclosures)
• Medical parts (syringes, surgical instruments)
• Toys (Lego bricks)

3.4 Advantages of Injection Molding

• Extreme precision: Capable of tight tolerances.
• Complex geometries: Handles intricate designs with undercuts and threads.
• High-volume efficiency: Ideal for mass production.
• Broad material options: Thermoplastics, thermosets, elastomers, metal powders.
• Exceptional surface finish: Often no secondary processing required.

3.5 Limitations of Injection Molding

• High upfront cost: Mold design and tooling can be expensive.
• No hollow part capability: Cannot make integrated hollow items.
• Thin wall challenges: Difficult with large surface-area thin parts.
• Energy-intensive: Requires high-pressure equipment.

4. Blow Molding vs. Injection Molding: Key Comparison

4.1 Side-by-Side Feature Table

4.2 Cost Analysis Deep Dive

• Mold Cost Influencers:
  • Material: Aluminum vs. hardened steel
  • Cavity number: Single vs. multi-cavity
  • Complexity: Undercuts, threads, inserts
  • Cooling channel design and hot runner systems
  • Manufacturing location: US vs. China vs. Europe
• Material Cost & Waste:
  • Blow molding is more material-efficient for hollow parts.
  • Injection molding allows better control and reuse of runners/sprues.
• Production Cycle Time:
  • Blow molding: Faster per part for simple containers.
  • Injection molding: Scalable through automation and multi-cavity setups.
• Break-Even Analysis:
  • Low volume: Blow molding is cost-effective.
  • High volume: Injection molding yields lower per-unit costs.

4.3 Production Speed & Volume

• Blow molding often produces larger parts quickly, but less efficiently at scale.
• Injection molding can use multi-cavity molds and automated handling to boost throughput dramatically.

4.4 Material Versatility

• Blow Molding: PET, HDPE, LDPE, PP, PVC.
  • Chosen for toughness, chemical resistance, clarity.
• Injection Molding: ABS, PP, PC, POM, Nylon, PEEK.
  • Chosen for mechanical strength, temperature resistance, engineering precision.

Material flow behavior and shrinkage play key roles in mold design and cooling rates.

4.5 Design Flexibility & Geometry

• Blow molding: Suitable for simple geometries like bottles and tanks.
• Injection molding: Enables undercuts, inserts, snap fits, threads, and complex bosses.
• Design constraints:
  • Minimum/maximum wall thickness
  • Parting line locations
  • Support for internal structures

4.6 Surface Finish & Tolerances

• Blow molding: Surface finish is basic; rougher textures.
• Injection molding: Polished, textured, or patterned surfaces are possible.

Typical tolerances:

• Blow molding: ±0.5 to 1 mm
• Injection molding: ±0.05 to 0.1 mm

Common defects:

• Blow molding: Wall thinning, stress cracks
• Injection molding: Sink marks, weld lines, flashing

4.7 Machine Considerations

Machine Complexity & Configuration

• Blow Molding Machines are generally less complex in terms of clamping force and control systems. They are designed specifically to extrude, inflate, and cool hollow parts, often with integrated deflashing units. Common types include extrusion blow molding (EBM), injection blow molding (IBM), and stretch blow molding (SBM) machines.

• Injection Molding Machines feature higher clamping forces, precise control systems, and complex mold actuation mechanisms (e.g., slides, lifters). These machines must withstand higher injection pressures and typically incorporate advanced hydraulic or electric drives.

Footprint and Maintenance

• Blow Molding Machines typically require less floor space and have simpler maintenance routines, especially for low-volume production lines.

• Injection Molding Machines are larger and more intricate, often requiring dedicated cooling systems, automated part pickers, and periodic mold alignment.

Automation Potential

• Injection Molding is highly compatible with robotic automation for part ejection, insert molding, in-mold labeling, and post-processing.

• Blow Molding can also be automated (especially IBM and SBM systems), but is generally more manual in post-trimming unless specialized equipment is used.

Energy Efficiency & Environmental Control

• Blow Molding machines usually consume less energy overall, particularly in continuous extrusion setups.

• Injection Molding machines tend to draw more power due to higher pressures and faster cycle demands, but newer electric and hybrid models offer improved efficiency.

Scalability & Upgrade Path

• Blow Molding Equipment is often tailored to specific part sizes and shapes, with limited flexibility across product lines.

• Injection Molding Equipment offers greater scalability—machines can be adapted to run different molds with automated changeovers, making them more versatile for contract manufacturing or multi-product facilities.

5. Beyond the Basics: Design, Sustainability & Future

5.1 Design for Manufacturability (DFM) Considerations

• Blow Molding Best Practices:
  How to design products to optimize wall thickness control, prevent material buildup, and simplify trimming processes. Effective blow molding designs ensure uniform distribution of plastic, minimize defects like thin spots or uneven surfaces, and reduce scrap rates during post-processing.
• Injection Molding Best Practices:
  Strategies to enhance melt flow, avoid sink marks and warpage, reduce cooling cycle time, and extend mold life. Good injection molding design also focuses on uniform wall thickness, strategically placed gates and vents, and minimizing complex undercuts to reduce manufacturing difficulties and costs.
• Visual Aids:
  Include a clear DFM illustration contrasting well-designed versus poorly designed parts, highlighting areas prone to defects or manufacturing challenges.

5.2 Sustainability & Environmental Impact – Key Differences

• Energy Consumption Comparison:
  Analyze and compare the energy efficiency of blow molding versus injection molding processes. Highlight which process typically consumes more power during heating, molding, and cooling phases.
• Waste & Recycling:
  Discuss the recovery rates of trim scrap and runners, and the potential for reprocessing scrap materials within each manufacturing process. Emphasize opportunities for circular material flow and reduced landfill waste.
• Recycled and Bio-based Plastics:
  Examine the compatibility, processing challenges, and emerging trends in using recycled plastics and bioplastics in blow and injection molding. Consider issues like material stability, flow properties, and impact on mechanical performance.
• Lifecycle Assessment (LCA) Overview:
  Briefly explain how to evaluate the environmental footprint of a product across its entire lifecycle—from raw material extraction, manufacturing, distribution, use, to end-of-life disposal or recycling—and how process choice influences this footprint.

5.3 Automation & Industry 4.0 Integration

• Robotic Assistance in Blow and Injection Molding:
  Explore the use of robotics for tasks such as part removal, trimming, assembly, and quality inspection, improving productivity and consistency.
• Smart Manufacturing & Data Analytics:
  How real-time data collection and analysis optimize cycle times, detect defects early, and improve overall equipment effectiveness (OEE).
• IoT Sensors in Equipment Monitoring:
  The role of IoT-enabled sensors in predictive maintenance, monitoring machine health, and ensuring process stability to reduce downtime and enhance quality control.

5.4 Industry Challenges & Future Trends

• Challenges:
  Address fluctuations in raw material prices, rising labor costs, and supply chain uncertainties impacting manufacturing economics.
• Future Trends:
  The development of new high-performance materials, demand for more energy-efficient and faster machines, and increasing market appetite for mass customization and personalized products.

6. Real-World Case Studies: When to Choose Which Process?

Case Study 1: Household Detergent Bottle

• Product Features: Hollow, thin-walled, high-volume, cost-sensitive.
• Process Choice: Blow Molding.
• Detailed Explanation:
  Blow molding excels for hollow containers due to its efficient wall thickness control and cost-effectiveness at large volumes. Injection molding would struggle with hollow geometries and require more complex tooling, leading to higher costs and potential quality issues like sink marks.

Case Study 2: Smartphone Housing / Automotive Dashboard

• Product Features: Complex geometry, high precision, premium surface finish, functional integration.
• Process Choice: Injection Molding.
• Detailed Explanation:
  Injection molding provides superior precision and surface quality needed for consumer electronics and automotive interiors. Blow molding cannot achieve the same level of detail or surface finish, nor handle complex integrated features efficiently.

Case Study 3: Medical Disposable Syringe

• Product Features: Extremely high precision, strict material requirements, large volumes, safety-critical.
• Process Choice: Injection Molding.
• Detailed Explanation:
  Injection molding meets the stringent quality, precision, and material compliance requirements essential for medical devices. The process’s ability to produce consistent, tight-tolerance parts ensures product safety and regulatory compliance.

7. Alternatives to Consider: Other Manufacturing Methods

• Thermoforming (Vacuum Forming):
  Suitable for large, simple-shaped thin-walled parts. It offers cost-effective tooling but is less suited for complex geometries.
• Rotational Molding:
  Ideal for very large, hollow, and complex parts but generally slower and less precise compared to blow molding and injection molding.
• 3D Printing (Additive Manufacturing):
  Best for low-volume, highly complex prototypes or custom parts with intricate features, though it remains relatively costly and slower for mass production.

Brief overview of these alternatives highlights where they fit relative to blow and injection molding in terms of scale, complexity, and cost.

8. Conclusion

• Core Summary:
  Recap the fundamental differences between blow molding and injection molding, emphasizing each process’s unique strengths and ideal application areas.
• Decision-Making Framework:
  Provide a simple decision tree or checklist based on product shape, production volume, budget, precision requirements, and material type to guide process selection.
• Future Outlook:
  Both technologies will continue evolving with advances in materials, automation, and sustainability to meet emerging market demands.
• Call to Action:
  “If you are still unsure about which process fits your project best, contact CSMFG’s expert team for personalized guidance!”

9.  FAQs

Q1: Which process is more expensive: blow molding or injection molding?
A: Generally, injection molding has higher upfront tooling and mold costs due to the complexity and precision required for molds. Blow molding molds are often simpler and less costly. However, for large-volume production of hollow parts, blow molding tends to have lower per-part costs. Injection molding can be more cost-effective for complex, high-precision parts, especially at high volumes. Ultimately, total cost depends on product complexity, volume, and material.

Q2: What materials can be used for blow molding and injection molding?
A:

• Blow Molding: Primarily uses thermoplastics like polyethylene (HDPE, LDPE), polypropylene (PP), PET, and PVC. These materials have good melt strength and flexibility to form hollow shapes.
• Injection Molding: Supports a wider range of thermoplastics, including ABS, polycarbonate (PC), nylon (PA), polystyrene (PS), polypropylene (PP), polyethylene (PE), and more engineering plastics. It also allows for fillers and reinforcements for enhanced mechanical properties.

Q3: Can injection molded parts be hollow?
A: Injection molding can produce hollow parts but typically requires additional techniques such as gas-assisted injection molding or core inserts to create internal cavities. It is not naturally suited for fully hollow thin-walled parts like blow molding, but it can create complex hollow geometries with high precision when needed.

Q4: How do I determine the best manufacturing process for my product?
A: Consider the following factors:

• Product Geometry: Hollow and thin-walled parts favor blow molding; complex, detailed shapes favor injection molding.
• Production Volume: Blow molding is often more cost-effective for large volumes of hollow parts; injection molding is suited for high-volume, high-precision parts.
• Material Requirements: Check material compatibility with each process.
• Surface Finish and Precision: Injection molding generally offers superior surface quality and tighter tolerances.
• Budget and Lead Time: Account for tooling costs and time to market.
  A process selection matrix or consultation with a manufacturing expert can help make the best choice.

Q5: What are the typical production cycle times for these two processes?
A:

• Blow Molding: Cycle times vary widely depending on part size and complexity, generally ranging from 10 to 60 seconds per part. Larger parts or multi-layer blow molding processes may take longer.
• Injection Molding: Typically faster cycles, often between 10 to 30 seconds for small to medium parts. Complex parts with longer cooling times may extend cycles. Automation can further reduce cycle time.

The post Blow vs Injection Molding: Best Choice for Your Project? first appeared on Supply CSMFG.

<p>The post Blow vs Injection Molding: Best Choice for Your Project? first appeared on Supply CSMFG.</p>

In the world of plastics manufacturing, two process technologies are leading the way: injection molding is like a precision sculptor, good at creating complex three-dimensional structures; extrusion is like an efficient assembly line artist, specializing in the production of continuous profiles. Together, these two processes form the cornerstone of modern manufacturing, from precision components of medical devices to kilometer-level production of building pipes.

A deep exploration of the essential differences between these two processes is not only related to the control of production costs, but also the key to the realization of product functions.

The Core Competitiveness of Injection Molding

By injecting molten plastic into precision molds under high pressure, it can achieve ultra-thin wall thickness of 0.1mm and perfectly replicate the subtle texture of the mold surface. Injection molding is particularly suitable for complex parts that require high integration, such as:

• Electronic component housing with multiple snap-on structures
• Automotive sensor components with built-in metal inserts
• Medical detection chips with microfluidic structures

The Core Competitiveness of Extrusion Molding

In contrast, extrusion molding shows the unique advantage of “macro-continuity”. Like a never-ending river of plastic, it can continuously produce profile products with consistent cross-sections. The magic of this process lies in:

• 24-hour non-stop production of kilometer-level pipes
• Co-extrusion composite technology of multi-layer materials
• -Online real-time monitoring and automatic adjustment system

Understanding the technical boundaries of these two processes is a must for every manufacturing engineer or procurement personnel.

Improper selection may lead to:

× Cost overruns (injection mold investment may be 5-10 times that of extrusion)

     × Quality defects (such as extrusion process trying to produce complex hinge structures)

     × Capacity bottlenecks (injection cycle time limits mass production)

This article will explore the core differences between extrusion vs. injection molding in detail to help you understand the trade-offs between plastic extrusion vs. injection molding, make an informed choice for your specific project, and source the most reliable injection molding supplier from China.

What is Extrusion Molding?

Extrusion molding is a continuous and efficient plastic processing process. Its working principle is to heat and melt the plastic raw materials, push them through a specific shape of die through a screw, and form a continuous product with a fixed cross-section after cooling and shaping.

The Process Mainly Includes Five Steps:

1. Raw material preparation: select suitable plastic particles according to product requirements
2. Melt plasticization: fully melt the plastic through heating and screw shearing
3. Mold forming: the melt passes through the die to form the required cross-sectional shape
4. Cooling and shaping: use water cooling or air cooling to solidify the product
5. Cutting and winding: cut or wind the continuous product according to the required length

Extrusion molding is particularly suitable for the production of long-sized plastic products such as pipes, plates, and profiles. It has the advantages of high production efficiency and low cost, and is widely used in construction, packaging and other industries. The key to process control lies in the coordination of temperature, pressure and traction speed.

Common Extrusion Plastics Products Include:

• Plastic pipe extrusion (e.g., water pipes, wire casings)
• Profiles (window frames, door frames)
• Films and sheets (e.g., plastic panel extrusion moulds can produce various types of plastic sheets)
• Wire and cable sheathing

What Is Injection Molding?

Injection molding is a high-precision plastic processing process. This process injects molten plastic into a closed mold cavity under high pressure, and forms the desired product after cooling and solidification. It is characterized by the ability to produce plastic parts with complex shapes and precise dimensions, and is particularly suitable for manufacturing products with fine structures and high-quality surface requirements.

The Process Mainly Includes the Following Steps:

1. Mold preparation: design and manufacture molds according to product shape
2. Raw material processing: select suitable plastic particles and dry them
3. Melt injection: heat and melt the plastic and inject it into the mold under high pressure
4. Cooling and shaping: the product is cooled and solidified in the mold cavity
5. Demolding: eject the molded product after opening the mold

This process is widely used in electronics, medical, automotive and other fields, and is one of the important methods of modern plastic processing.

Extrusion vs. Injection Molding: Key Differences

Now, let’s take a closer look at the specific differences between extrusion and injection molding:

When to Choose Extrusion?

Extrusion molding is usually chosen based on the following considerations:

• Products need a constant cross-section: If your product is a long strip, tube or plate with a uniform cross-section.
• Large-volume continuous production: Extrusion processes excel at continuous operation and are suitable for situations where large quantities of the same profile are required.
• Cost sensitivity: The initial mold cost is low, suitable for projects with limited budgets.
• Material variety: Suitable for a variety of thermoplastics, such as PVC, PE, PP, PS, etc.

For example, if you are a plastic pipe extrusion moulds manufacturer or factory, then extrusion molding is undoubtedly your core process.

When to Choose Injection Molding?

Injection molding is usually chosen when:

• Products have complex shapes that require high precision and fine details: If the product contains multiple functional parts, threads, holes, inserts or complex geometric structures.
• High requirements for dimensional accuracy and surface finish: Injection molding can provide excellent dimensional control and smooth surfaces.
• Need to produce a large number of discrete parts: Despite the high cost of molds, the cost per part of injection molding decreases rapidly after a certain production volume.
• Multiple material options: Almost all thermoplastics and some thermosets can be used for injection molding.

Conclusion: Choose the Best Process Catering to Your Needs

In summary, extrusion and injection molding have their own advantages and disadvantages, and they are complementary rather than competitive in the field of plastic manufacturing.

Before making a decision, carefully evaluate your product design, required production volume, budget constraints, and material requirements. Generally, for long and continuous profiles, extrusion molding is the best choice; while for complex and precise discrete parts, injection molding has more advantages.

By weighing these factors, you will be able to choose the plastic molding process that best suits your project needs, ensuring production efficiency and product quality.

At CSMFG, we focus on quickly turning your innovative ideas into reality, providing excellent custom injection molding services to fully meet various needs from rapid prototyping to mass production.

Our team of injection molding engineers are proficient in complex design and manufacturing, from material selection to mold construction and fluid analysis. We conduct comprehensive quality forecasting and rigorous inspections to ensure product accuracy and can achieve fast turnarounds as low as 7 days.

When you choose CSMFG, you will benefit from our deep experience since 2003. As an American-owned company certified by ISO 9001, we have an international management team and a professional team of about 100 experienced engineers and QA experts. We provide a one-stop solution from mold design to production, and are committed to exceeding your expectations with short delivery times and excellent quality control that are better than industry standards.

CSMFG follows a rigorous eight-step workflow, from your request submission to global logistics delivery, ensuring transparency and efficiency at every step. Through rigorous internal inspections and standard operating protocols, we ensure that each product meets world-class manufacturing quality and accurately meets your needs for the best price, quality and service.

FAQs

1. What’s the main difference between extrusion and injection molding?

Extrusion creates continuous shapes by forcing material through a mold, while injection molding injects molten material into a mold to form detailed parts.

2. Which process is better for high-volume, uniform parts?

Extrusion is ideal for continuous, uniform products, while injection molding is better for complex, high-precision parts.

3. What materials can be used for extrusion and injection molding?

Extrusion typically uses thermoplastics like PVC and polyethylene, while injection molding works with a wider range, including thermoplastics, thermosets, and metals.

The post Extrusion vs Injection Molding: Key Differences Explained first appeared on Supply CSMFG.

<p>The post Extrusion vs Injection Molding: Key Differences Explained first appeared on Supply CSMFG.</p>
